INSL24UL

Features

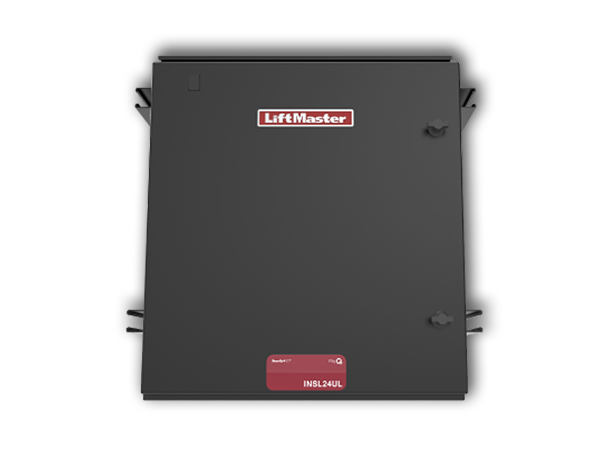

The LiftMaster^® Heavy-Duty Industrial Slide Gate Operator builds on the brand’s legacy of reliability. Easy to install, retrofit, program, and troubleshoot, it delivers worry-free continuous-duty operation, even in extreme weather conditions. The operator consistently lives up to the tireless demands of manufacturing, transportation, municipality, utility, and warehouse environments. It also works as a complete system when paired with safety devices and offers full control over access points via myQ® technology.

Soft start/soft stop, motor 24V. DC., brushless.
Lockable steel cabinet, 14 ga. steel, weatherproof (NEMA 3R rated) cabinet prevents unauthorized access into the operator and protects it from the environment.
Optional riser (MRIN) makes it easy to replace an existing operator, providing multiple mounting positions and better protection from the climate.
Approved for gates up to 21.3 m (70 ft.) long and weighing up to 998 kg (2,200 lb.).

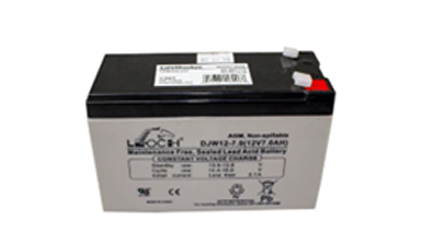

Battery backup included, gate always in operation, with 7AH, 55 cycles and 105 daysin length, and with 33AH, 170 cycles and 180 days in length.
120/240VAC single phase, optional 3 phase kit for 208/230/460VAC and 575VAC.
Operation without heater -4°F (-20°C) to 140°F (60°C); with optional heater: -40°F (-40°C) to 140°F (60°C)
MyQ and internet compatible with the internet gateway 828LM.

Security+ 2.0^® 3-channel receiver will handle up to 50 remote controls (unlimited remotes with 811LMX/813LMX).
Compliant with ANSI/CAN/UL325 standards
5 years warranty

Standard security systems

Your security, our priority!

Security+^®

Security+ 2.0 random code technology ensures that a new signal is sent each time the remote control is used.
The patented PosiLock device ensures the gate is securely locked when closed.

Decoupling systems

The INSL24UL model is equipped with a disengagement/reengagement system for manual operation which is concealed to avoid any risk of accident or injury.
